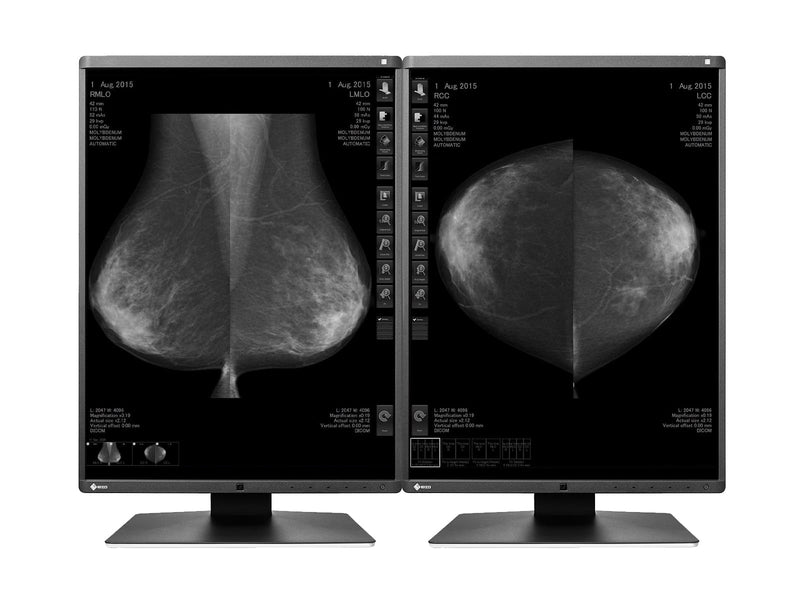

Eizo RadiForce GX560 5MP 21" LED Grayscale Mammo 3D-DBT Breast Imaging Display Monitor (GX560-MD)

The GX560 MammoDuo displays detailed mammography images and images of fine structures in high resolution. Two times 5 megapixels and a degree of luminance, which is suited to the specific task, ensures excellent reproduction.


Excellent Image Quality For Ultra-Sharp Details

Thanks to a high resolution of two times 5 Megapixels (grayscale), an excellent contrast ratio of 1700:1 and stable brightness of up to 2500 cd/m², the Eizo RadiForce GX560 offers excellent image quality. Diagnosis in digital mammography depends on the display of the finest details. A high resolution obtains key details and prevents lower image quality with a mosaic effect, which can arise with lower resolutions. The details are presented in a differentiated manner, no matter from which viewing angle the monitor is viewed. This is a great advantage when several doctors are looking at the same screen.


A New Level of Observation, Without Disruptive Factors

With a bezel only 7.5 mm in width the world's thinnest bezel width for 5-megapixel monitors the distance between the display areas of the two monitors is merely 15 mm. Moreover, the panel frame is only 2.5 mm above the screen, which means it sits nearly flush with the screen. This means viewers' vision goes undisrupted when looking back and forth between the monitors.


Space Saving Arrangement

The GX560-MD saves a great deal of space. This solution saves 67 mm horizontally, 36 mm vertically, and 20.5 mm in depth, compared to conventional structures built from individual monitors with this resolution arranged next to one another. In summary, this means a 22 % reduction of the total required surface. This frees up valuable space to make for a roomier working environment.


Easily Adjustable

You can conveniently adjust the height, tilt, and rotation of the monitors with the dual stand, without creating gaps between the monitors.


Point-and-Focus: Easily Select The Analysis Area

The Point-and-Focus function allows you to quickly select and focus on relevant image areas using your mouse or keyboard. By adjusting the brightness and greyscale, you can highlight interesting parts of an image by dimming the surrounding areas.


Switch-and-Go: Straightforward Operation Without Obstacles

The USB conversion takes place within the monitor with the Switch-and-Go function. This allows you to use a single set of keyboard and mouse at two different workstations at the same time. You can switch between the two workstations simply by moving the mouse cursor from one screen to the other. This ensures greater work efficiency and allows you to maintain a clear overview of your workstation.


Consistently Secure Image

The optional EIZO RadiCS software to secure image quality enables extensive maintenance and testing of monitors and includescalibration, acceptance and constancy testing, and the archiving of all areas. If you are working on multiple stations, the use of the RadiNET Pro is recommended. This can be used to centrally control thecalibrationof all monitors, including data history. This saves you a significant amount of time and ensures consistently high image quality across the entire setup. The basic version RadiCS LE is already included with the RadiForce GX, RX, and MX/MS models.


Uniform Brightness Over The Entire Screen

The Eizo RadiForce GX560 shines thanks to its uniform illumination. This is down to theDigital Uniformity Equaliser (DUE), which corrects imbalances automatically, pixel by pixel. Grey tones of radiological and other medical images are correctly rendered over the entire display. This is vital for diagnostics.


Balanced Image Quality Thanks to an Integrated Front Sensor

The precise calibration of white point and tone value characteristic curve is provided by an integrated front sensor (IFS). This measures the brightness and greyscales and calibrates the monitor autonomously according to the DICOM® standard. The sensor works automatically, without restricting the field of vision of the monitor. You can save the costs, time, and effort of maintenance and rely on a consistently balanced image quality.


High-Contrast to the Slightest Detail

The high contrast ratio means that images are mapped to a high level of detail. Greyscales and black values are highly differentiated. The result: extremely sharp rendering of greyscale images. You can even identify the finest structures.


Blur Reduction

LCD panels with a high brightness level tend to have more blurry image rendering thanks to over-framing than would be possible in comparison with an acquired exposure. Therefore, EIZO offers blur reduction anchored in monitor hardware. It retrieves details lost in the contours on the screen, meaning that the image is rendered as clearly as possible.


Constant Brightness During Operation

A sensor for the backlight permanently determines the luminance of Eizo RadiForce GX560. The benefit: The defined and calibrated values are rendered exactly just seconds after the monitor is turned on and remain constant during the entire period of use. The sensor is invisibly integrated in the monitor.


Presence Sensor: Save Electricity When You Are Not in Front of the Monitor

Thanks to the presence sensor, you can save electricity and help protect the environment. The sensor registers whether someone is sitting in front of the screen or not. As soon as the person leaves the workstation, the Eizo RadiForce GX560 turns off automatically. When the person comes back, it turns back on fully automatically, without touching the mouse or keyboard. It is always ready for use without a waiting period.


One Solution, Many Ports

It couldn't be simpler: Most of your end devices, such as PCs, laptops or cameras, can be connected directly to the monitor. The MammoDuo has a wide range of interfaces. This makes your everyday work much easier.


Multi-Monitor Solutions Without Problems

Thanks to the signal input and output, you can link several RadiForce monitors through their Display Port interface. This means that you can realize multi-monitor solutions with the greatest of ease without laborious and excessive cabling.


FDA 510 (k) Validation

The RadiForce GX560-MD is the ideal solution for visualizing the finest details on breast images. The very high contrast of the monitor shows even the smallest structures. The US administration for Food and Drugs granted its FDA 510(k) validation for breast tomosynthesis and mammography.


Ambient Light Sensor Supports the Constancy Test

The sensor integrated in the monitor is used to measure the ambient light and can be used for constancy tests. The prevalent illumination can be determined by the ambient light sensor with the optional RadiCS software.


Reliable Brightness

EIZO is convinced of the quality of its products. The warranty for the monitors, therefore, also covers the brightness stability.


Perfectly Designed for Diagnostic Use

Narrow black frontal bezels make this device ideal for use in dark environments. They make it easy to visually concentrate on the display. Meanwhile, a white bezel at the sides of the monitors creates a fresh, clean look.


Evolve Your Image Reading: The Work-and-Flow Technology

Radiologists face an increasing amount of information on their screens, as modalities become increasingly digitalized. But imaging procedures now no longer need to be so complex, thanks to the unique Work-and-Flow technology from EIZO, featuring new functions developed specially to meet the requirements of radiologists. The RadiForce GX560-MD and RadiCS-LE software solution enable you to benefit from the Work-and-Flow functions.
